CCPS32 Ceramic Endress Hauser Pressure Sensor Capacitive Corrosion Resistant

Brand Name:	Endress+Hauser
Model Number:	CCPS32/UCS2
MOQ:	10
Price:	USD/CNY
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

HART

Brand:

Endress+Hauser

Material:

Capacitive Ceramic

Packaging Details:

Carton packing

Highlight:

Ceramic Endress Hauser Pressure Sensor

Capacitive Endress Hauser Pressure Sensor

Corrosion Resistant Capacitive Pressure Sensor

Product Description

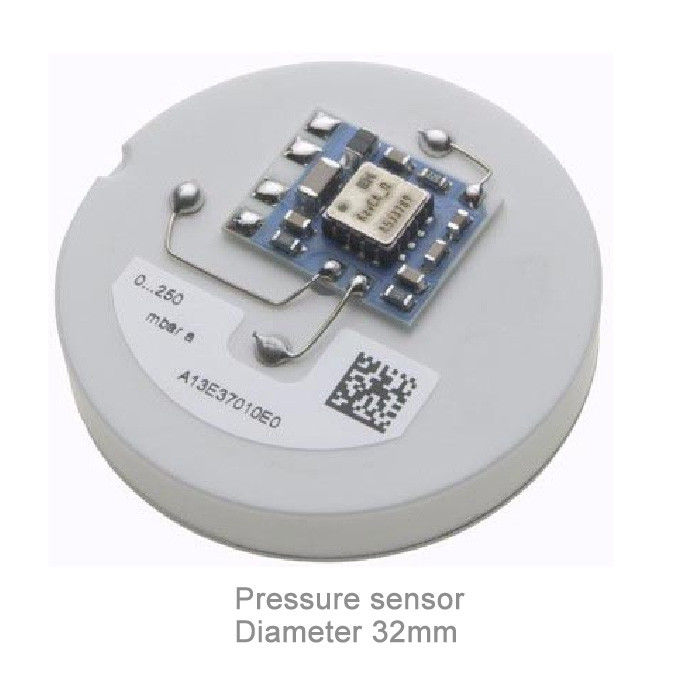

Endress+Hauser CCPS32 Capacitive Ceramic Pressure Sensor

Performance

Basic ceramic material

- Extremely high overload limit

- Absolutely resistant to wear

- High temperature stability

- High long-term stability

- No hysteresis

- Corrosion-resistant

Active electronic

-Sensor-specific signal conditioning

-High-accuracy pressure measurement

-Temperature stability

Application

The pressure sensing element CCPS32 detects the applied pressure and converts them into a pressure proportional voltage signal.

There are several different versions available for measuring absolute pressure and gauge pressure. Absolute pressure ranges 100mbar to 70bar are available as standard.

Constant quality in series production at a high level-this claimis accomplished through quality planning an quality assurance.

In addition, we offer the complete solution for your special application requirements: our offer also includes the design and electrical adaptation of the CCPS32 to your individual requirement.

Technical data

Input
MeasuringrangesGaugepressure
Gaugepressureranges	Max.permissibleoverload
-2.5......2.5Kpa	250Kpa
0......5Kpa	-30Kpa/400Kpa
0......10Kpa	-30Kpa/400Kpa
-10......10Kpa	600Kpa
0......20Kpa	600Kpa
-20......20Kpa	600Kpa
0......40Kpa	600Kpa
0......100Kpa	1Mpa
-40......100Kpa	1Mpa
-100......100Kpa	1Mpa
0......200Kpa	1.8Mpa
-100......400Kpa	2.5Mpa
-0.1......1Mpa	4Mpa
-0.1......2Mpa	4Mpa
-0.1......4Mpa	6Mpa
-0.1......7Mpa	10.5Mpa

Output
Outputsignal		0.5V...4.5V
Zero		0.50V±0.05V
Range		4.50V±0.05V
Hysteresis		negligible
Characteristics		Linear
Conformity(sumoflinearityerror,		≤0.2%ofoutputrange
hysteresisandrepeatability)
Permissibleload		≥10KΩ≥300pF
Risetime		Approx.1ms
Switch-ontime		Max.10ms
Long-termstability		Max.annualerror0.1%ofrange
Absolutepressure
Absolutepressureranges		Max.permissibleoverload
0......10Kpa		400Kpa
0......20Kpa		600Kpa
0......100Kpa		1Mpa
0......120Kpa		1Mpa
0......200Kpa		1.8Mpa
0......400Kpa		2.5Mpa
0......500Kpa		2.5Mpa
0......1Mpa		4Mpa
0......2Mpa		4Mpa
0......4Mpa		6Mpa
0......7Mpa		10.5Mpa
Overloadeffect		Negligible
Measuredmedia		Gasesandfluids,alsoaggressiveandcorrosive,asfaras
		compatiblewithaluminiumoxideceramics(99.9%)
Materialswettedbyprocess		Diaphragm:99.9%aluminiumoxideceramics(Al2O3)
Powersupply
Supplyvoltage		5VDCstabilized,minimum4.5V/maximum5.5V
Effectofsupplyvoltage	Onlinearity		Noeffect
	Onrangestart		Proportional
	Onmeasuringrange		Proportional
	Ontemperaturecompensation		Noeffect
Max.Supplycurrent		2mAatavoltagesupplyof4.5V
		Typical:<1.5mAatavoltagesupplyof4.5V
Environmentalconditions
Ambienttemperaturerange		-40℃...125℃
Processtemperaturerange		-40℃...125℃
Compensatedtemperaturerange		-20℃...80℃
Storagetemperature		-40℃...125℃
Thermalchange
Thermalchangeofthelowerrange-valueinthecompensationtemperaturerange:max.±0.75%ofspan,
withextendedspecification±1%ofspan.
Thermalchangeofoutputspaninthecompensationtemperaturerange:max.±0.5%ofspan.Withmeasuring
ranges≤0.4bar±0.8%ofspan,withextendedspecification±1%ofspan.
