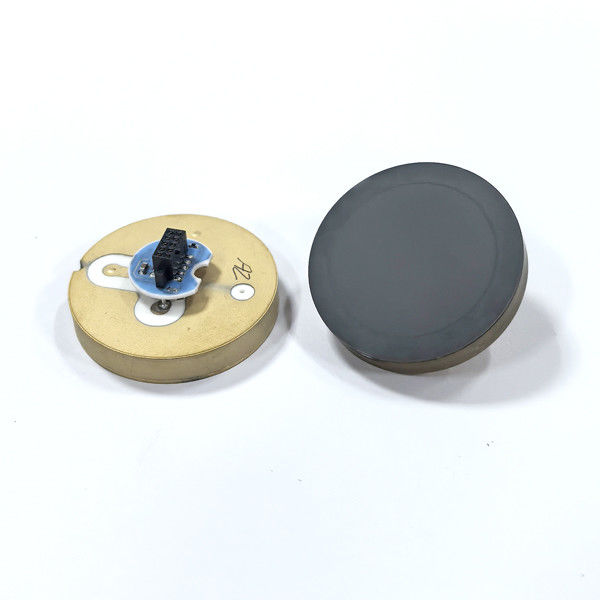

Endress Hauser Pressure Sensor Element For Pressure Level Transmitter

Specifications:

• Outside Diameter: 32.4 mm
• Measuring Ranges: Standardized from 0 to 100 mbar and up to 40 bar
• Connection Technology: Features a patented metallic solder connection between the sensor base and membrane
• Construction: The sensor base element has a metallic coating that enhances EMC compatibility and minimizes installation sensitivity
• Material: Made from high-purity ceramic (99.9% Al2O3), offering excellent resistance to various process media and being chemically inert
• Design: Operates as a dry measuring cell without oil for pressure transmission, making it vacuum-resistant
• Durability: High overload resistance ensures reliability
• Output Characteristics: Provides a linearized and temperature-compensated output

Communication Interfaces:

• Analog Output:
  • Ratiometric
  • Absolute
• Digital Output:
  • SPI
  • UART
• Output Flexibility: Digital and analog signals can be combined
• Additional Outputs:
  • Switching output
  • Temperature output
• Custom Configuration: Configurable for specific applications

Sensor Configuration:

• Factory Settings: Pre-configured for damping, turn-down, and measuring range
• Adjustable Measuring Rate: Optimizes resolution and power consumption
• User Configuration: Possible on the customer’s side
• Dual Output Capability: Can provide both pressure and temperature signals
• Power Efficiency: Consumes less than 1.6 mA

Safety Features:

• Self-Monitoring: Ensures maximum safety of the measuring cell
• Secure Communication: Utilizes secure protocols for data transmission
• Certifications: Approved for ATEX, RoHS compliant, and uses FDA-listed materials
