Ceracore USC70 Endress Hauser Pressure Sensors Vacuum Resistant

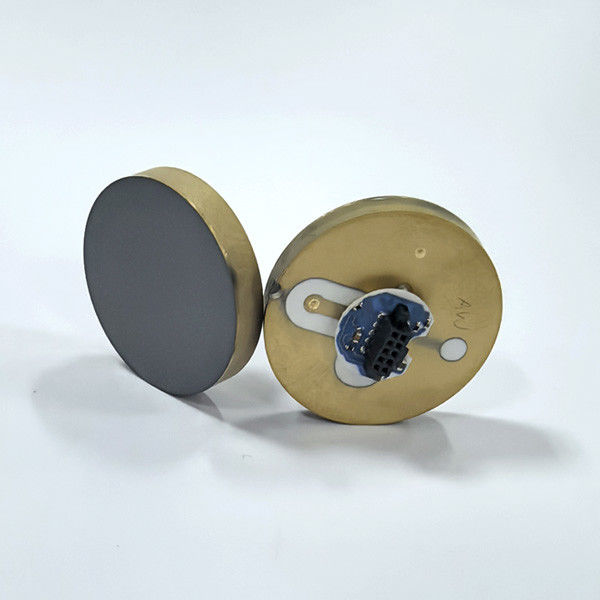

Ceracore USC70 Endress Hauser Pressure Sensors

The Ceracore USC 70 is based on the same capacitive ceramic technology as the USC30. Only the outer diameter is almost twice as large.

• Outside diameter of 32.4 mm
• Standardized measuring ranges from 0 … 100 mbar to 0 … 40 bar
• Patented metallic active solder connection of sensor base element and membrane
• Metallic coating of the sensor base element for improved EMC compatibility and reduced installation sensitivity
• Manufactured from high-purity ceramic (99.9% Al2O3) and is therefore highly resistant to a wide variety of process media and chemically neutral
• As a dry measuring cell without the use of oil for pressure transmission, the Ceracore is vacuum-resistant
• High overload resistance
• Linearized and temperature compensated output
• Interfaces for communication

Analogue output signal

• Ratiometric
• Absolut

Digital output signal

• SPI
• UART

Digital and analogue output signal can be combined

• Switching output
• Temperature output
• Application-specific configuration

Factory pre-configured sensor (damping, turn-down, measuring range, etc.)

• Adjustable measuring rate for optimal resolution / power consumption
• Customer-side configuration possible
• Output of pressure and temperature signal possible
• Power consumption <1,6 mA
• Security

Self-monitored measuring cell for maximum safety

• Communication via secure protocols
• Approved e.g. ATEX
• RoHS
• FDA-listed materials

FAQ:

Here are some frequently asked questions and answers about the Endress+Hauser pressure sensor product:

Q: What is the model number of this pressure sensor?

A: The model number of this pressure sensor is USC70

Q: Where is this pressure sensor made?

A: This pressure sensor is made in Germany.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 10.

Q: What is the price of this pressure sensor?

A: The price of this pressure sensor is in USD/CNY. Please contact our sales team for a quote.

Q: What payment terms are accepted for this product?

A: We accept T/T payment for this product.

Q: What certification does this pressure sensor have?

A: This pressure sensor has HART certification.

Q: What is the supply ability of this product?

A: The supply ability of this product is 10000PCS per month.

Q: What is the delivery time for this product?

A: The delivery time for this product is 5-8 workdays.

Q: What are the packaging details for this product?

A: This product is packed in cartons.
