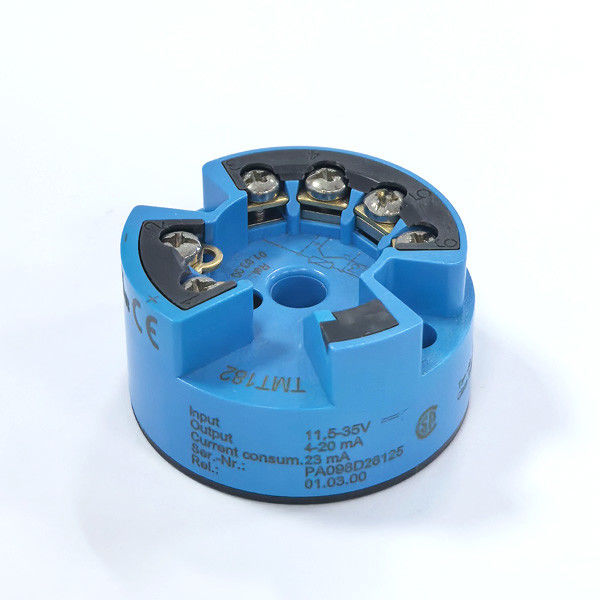

Rtd TMT182 Endress Hauser Temperature Transmitters Head Mounted

Name: Rtd TMT182 Endress Hauser Temperature Transmitters Head Mounted
Brand: SENSE Instruments Co., Ltd.
SKU: TMT182
Availability: InStock

Brand Name:	Endress+Hauser
Model Number:	TMT182
MOQ:	10PCS
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Certified for use in Zone 2 (Ex ec) / Div. 2 areas

Output:

4 To 20 MA Analog Output

Current Consumption:

3.5 To 22.5 MA

Product Category:

Head Mounted Temperature Transmitter

Input:

Single RTD Sensor Input For Pt100 Or Pt1000 (2-/3- Or 4-wire) Sensors

Installation:

Installation In Terminal Heads Form B As Per DIN EN 50446

Product Name:

Temperature Transmitter ITEMP TMT31 For Accurate And Reliable RTD Measurements

Packaging Details:

Carton packing

Highlight:

tmt182 head mounted transmitter

tmt182 temperature transmitter

rtd head mounted transmitter

Product Description

iTEMP® HART® TMT182

Temperature head transmitter

Head transmitter for resistance thermometers (RTD),

thermocouples (TC), resistance and voltage transmitters (mV),

HART® -protocol, for installation in a sensor head Form B

Application

• Temperature head transmitter with HART® -protocol for converting various input signals into an scalable 4 to 20 mA analogue output signal

• Input:

Resistance thermometer (RTD)

Thermocouple (TC)

Resistance transmitter (Ω)

Voltage transmitter (mV)

• HART® -protocol for front end unit or panel unit operation using the hand operating module (DXR275, DXR375) or PC

(e. g. ReadWin® 2000, COMMUWIN II or FieldCare)

• Ex-Certification

- ATEX Ex ia and dust zone 22 in

compliance with EN 50281-1

- FM IS

- CSA IS

• Galvanic isolation

• Output simulation

• Min./max. process value indicator function

• Customer specific linearization

• Linearization curve match

• Customer specific measurement range settings or expanded SETUP

Your benefits

• Universal settings with HART® -protocol for various input signals

• Operation, visualisation and maintenance via PC,

e. g. COMMUWIN II operating software

• 2 wire technology, 4 to 20 mA analogue output

• High accuracy in total ambient temperature range

• Fault signal on sensor break or short circuit, presettable to NAMUR NE 43

• EMC to NAMUR NE 21, CE

• UL recognized component to UL 3111-1

• GL Germanischer Lloyd marine approval

Measuring system:

The iTEMP® HART® TMT182 temperature head transmitter is a two wire transmitter with analogue output. It has measurement input for resistance thermometers (RTD) in 2-, 3- or 4-wire connection, thermocouples and voltage transmitters. Setting up of the TMT182 is done using the HART® -Protocol with hand operating module (DXR275, DXR375) or PC (COMMUWIN II).
