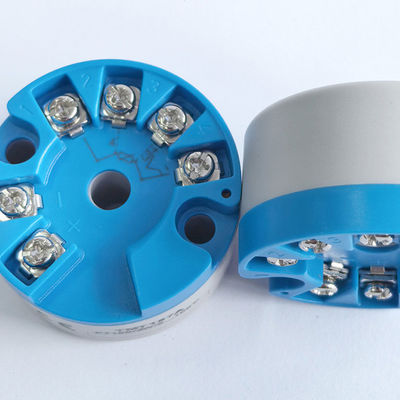

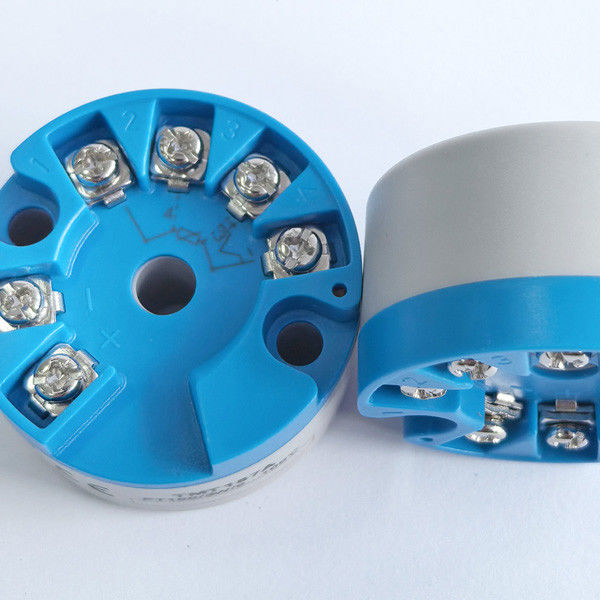

TMT188 Head Mounted Temperature Transmitter 4 To 20mA RTD TC PT100 2 Wire

Brand Name:	SENSE
Model Number:	TMT88
MOQ:	10PCS
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

Power Supply:

7.5 To 45V DC

Input:

RTD And TC

Output:

4-20mA

Isolation:

2000V AC Galvanic Isolation

Mounting:

Head Mounted

Operating Temperature:

-40 To +100 °C

Storage Temperature:

-40 To +85 °C

Protection Rating:

IP00

Weight:

90 G

Housing Material:

Plastic

Dimensions:

112.5 X 12.6 X 99 Mm

Signal Transmission:

2-wire

Response Time:

≤ 1s

Accuracy:

±0.1% Of Span

Packaging Details:

Carton packing

Highlight:

TMT188 Head Mounted Temperature Transmitter

RTD Head Mounted Temperature Transmitter

TC 2 Wire Temperature Transmitter

Product Description

TMT188 head mounted temperature transmitter 4 to 20mA RTD TC PT100 2 wire

Head mounted temperature transmitter TMT188 for resistance thermometers(RTD),thermocouples(TC), resistance and voltage transmitters,settable via iHART-protocol
High performance, high reliability
Variety of sensor inputs
Hart Digital communication
Self-diagnostics function

Application areas

Head mounted temperature transmitter with iHART- protocol for converting various input signals into a scalable 4 to 20 mA analogue output signal

Performance

Settings with iHART-protocol for various input signals
2 wire technology, 4 to 20mA analogue output
High accuracy in total ambient temperature range
Galvanic isolation
An internal temperature sensor for active temperature
compensation(For T/C)
Wide voltage supply range
Customer speciϐic measurement range settings
Expanded resistance input (max. 2KΩ)
Expanded voltage input (max. 2KmV)

Input

Resistance thermometer (RTD)
Thermocouple (TC)

Input	Type	Measurement Ranges	Min.meas.ranges
Resistance thermonmeter(RTD)	PT100	-200℃ to 850℃(-328℉ to 1562℉)	10K
Resistance thermonmeter(RTD)	PT1000	-200℃ to 250℃(-328℉ to 482℉)	10K
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples (TC)	B(PtR30-PtRh6)	0℃ to 180℃(-32℉ to 3308℉)	500K
Thermocouples (TC)	E(NiCr-CuNi)	-270℃ to 1000℃(-454℉ to 1832℉)	50K
Thermocouples (TC)	J(Fe-CuNi)	-210℃ to 1200℃(-346℉ to 2192℉)	50K
Thermocouples (TC)	K(NiCr-Ni)	-270℃ to 1372℃(-454℉ to 2501℉)	50K
Thermocouples (TC)	N(NiCrSi-NiSi)	-270℃ to 1300℃(-346℉ to 2372℉)	50K
Thermocouples (TC)	R(PtRh13-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	S(PtRh10-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	T(Cu-CuNi)	-270℃ to 400℃(-454℉ to 752℉)	50K
► ON Request

SENSE INSTRUMENTS has been developing and manufacturing temperature transmitters for 30 years. Our research and development team has rich experience, all products can provide PC side debugging software. And we can customize software to customers, OEM customization service is our strength. HART temperature transmitter can provide DD file, product support handheld communicator debugging.

Dimensions

How to programme

Installation diagram

TMT188 Head Mounted Temperature Transmitter 4 To 20mA RTD TC PT100 2 Wire 2
