HART Head Mounted Temperature Transmitter TMT192C With DD Files

Name: HART Head Mounted Temperature Transmitter TMT192C With DD Files
Brand: SENSE Instruments Co., Ltd.
SKU: TMT192C
Availability: InStock

Brand Name:	SENSE
Model Number:	TMT192C
MOQ:	10PCS
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

HART

Power Supply:

7.5 To 45V DC

Input:

Universal Input

Output:

4-20mA+HART

Isolation:

2000V AC Galvanic Isolation

Mounting:

Head Mounted

Operating Temperature:

-40 To +100 °C

Storage Temperature:

-40 To +85 °C

Protection Rating:

IP00

Weight:

90 G

Signal Transmission:

2-wire

Response Time:

≤ 1s

Accuracy:

±0.1% Of Span

Packaging Details:

Carton packing

Highlight:

Head Mounted Temperature Transmitter TMT192C

DD Files Head Mounted Transmitter

HART Head Mount Transmitter

Product Description

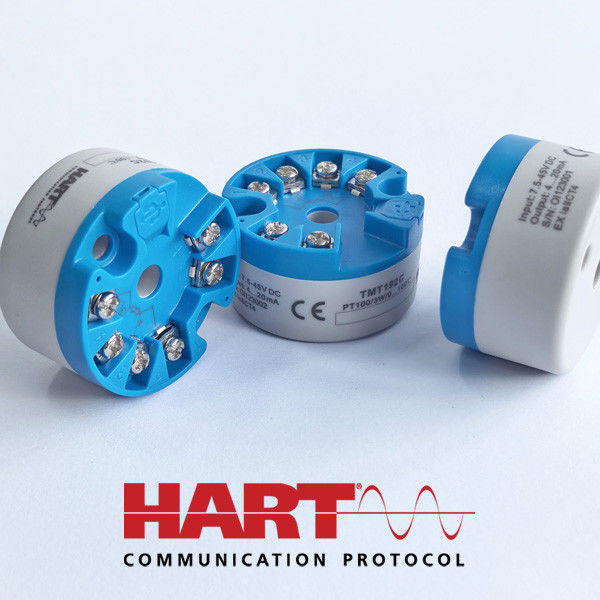

HART® 7 temperature transmitter TMT192C head mounted temperature transmitter with DD files

The TMT192C head-mounted temperature transmitter is designed for use with resistance thermometers (RTD) and thermocouples (TC), as well as resistance and voltage transmitters. It offers configuration through the HART protocol, ensuring high performance and reliability. This device supports a wide range of sensor inputs, features HART digital communication, and includes a self-diagnostic function.

Application areas

Head mounted temperature transmitter for converting various input signals into a scalable 4 to 20 mA analogue output signal

Service

Free PC software (software can customize LOGO)
Provide DD file
Labels can be customized
Packaging:
Carton packing, 12PCS/ box

Performance

The device offers universal configuration options for a variety of input signals and utilizes 2-wire technology with a 4 to 20 mA analog output. It ensures high accuracy across the entire ambient temperature range and features galvanic isolation. Additionally, it includes an internal temperature sensor for active temperature compensation (specifically for thermocouples). The unit supports a wide voltage supply range and allows for customer-specific measurement range settings. It also accommodates expanded resistance input up to 2 kΩ and expanded voltage input up to 2 mV

Input

Resistance thermometer (RTD)
Thermocouple (TC)
Resistance transmitter (Ω)
Voltage transmitter (mV)

Input	Type	Measurement Ranges	Min.meas.ranges
Resistance thermonmeter(RTD)	PT100	-200℃ to 850℃(-328℉ to 1562℉)	10K
Resistance thermonmeter(RTD)	PT500	►-200℃ to 250℃(-328℉ to 482℉)	10K
Resistance thermonmeter(RTD)	PT1000	-200℃ to 250℃(-328℉ to 482℉)	10K
Resistance thermonmeter(RTD)	Cu50	►-50℃ to 150℃(-58℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Cu100	►-50℃ to 150℃(-58℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Ni100	►-60℃ to 180℃(-76℉ to 356℉)	10K
Resistance thermonmeter(RTD)	Ni500	►-60℃ to 180℃(-76℉ to 356℉)	10K
Resistance thermonmeter(RTD)	Ni1000	►-60℃ to 150℃(-76℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Resistance(Ω)	0Ω to 400Ω	10Ω
Resistance thermonmeter(RTD)	Resistance(Ω)	0Ω to 2000Ω	20Ω
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples (TC)	B(PtR30-PtRh6)	0℃ to 180℃(-32℉ to 3308℉)	500K
Thermocouples (TC)	E(NiCr-CuNi)	-270℃ to 1000℃(-454℉ to 1832℉)	50K
Thermocouples (TC)	J(Fe-CuNi)	-210℃ to 1200℃(-346℉ to 2192℉)	50K
Thermocouples (TC)	K(NiCr-Ni)	-270℃ to 1372℃(-454℉ to 2501℉)	50K
Thermocouples (TC)	N(NiCrSi-NiSi)	-270℃ to 1300℃(-346℉ to 2372℉)	50K
Thermocouples (TC)	R(PtRh13-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	S(PtRh10-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	T(Cu-CuNi)	-270℃ to 400℃(-454℉ to 752℉)	50K
Voltage transmitters(mV)	Millivolt transmitter(mV)	-75mV to 75V	5mV
Voltage transmitters(mV)	Millivolt transmitter(mV)	-700mV to 200V	20mV
► ON Request

Ordering code

	Certification
	A B	Version for non hazardous areas NEPSI Ex ia CT4
		Configuration transmitter connection
		A 1 2 3 4	Standard factory configuration 3-wire
			Configuration Configuration Configuration Configuration			connection TC connection RTD(2-wire) connection RTD(3-wire) connection RTD(4-wire)
			Configuration temperature sensor
			A 1 2 3 4 5 6 7 8 B E J K N R S T	Standard factory configuration Pt100 Pt100-200℃ to 850℃(-328°Fto 1562°F) Pt500-200℃ to 250℃(-328°F to 482"F) Pt500-200℃ to 250℃(-328F to 482°F) Pt1000-200℃ to 250℃(-328°F to 482°F) Cu50 -50℃ to 150℃(-58°F to 302°F) Cu100-50℃ to 150℃(-58°F to 302°F) Ni100-60℃ to 180℃ (-76°Fto 356°F) Ni500-60℃ to 180℃(-76°Fto 356°F) Type B 0℃ to 1820℃(-32°F to 3308°F Type E -270℃ to 1000℃(-454F to 1832°F) Type J-210℃ to 1200℃(-346°Fto 2192°F) Type K-270℃ to 1372℃(-454°F to 2501F) Type N -270℃ to 1300℃(-454°F to 2372°F) Type R -50℃ to 1768℃(-58°F to 3214.4°F) Type S-50℃ to 1768℃(-58°Fto 3214.4°F) Type T -270℃ to 400℃(-454°F to 752°F)
				Configuration
				A B C D	Standard factory configuration(Pt100/3-wire/0 to 100℃) Customised measurement range Customised expanded configuration for TC Customised expanded configuration for RTD
TMT192C					Order code(complete) For example:TMT192CA-AAAA

Dimensions
HART Head Mounted Temperature Transmitter TMT192C With DD Files 0

How to programme

HART Head Mounted Temperature Transmitter TMT192C With DD Files 1

Install

HART Head Mounted Temperature Transmitter TMT192C With DD Files 2
