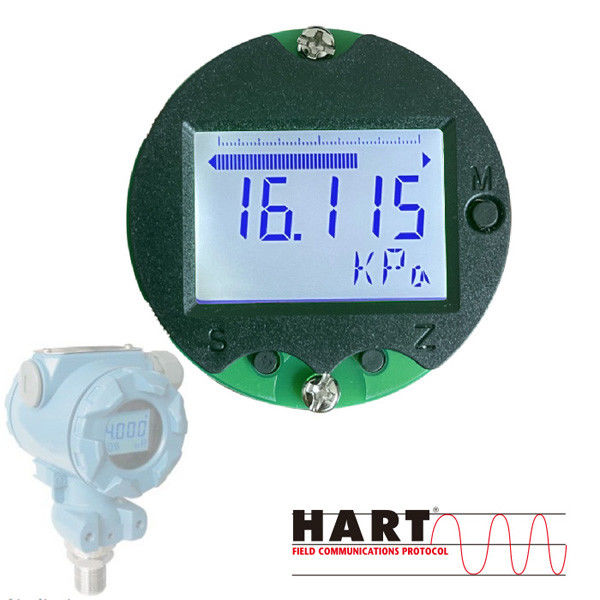

Integrated On Site Display Smart Pressure Transmitter Circuit Board With HART

Name: Integrated On Site Display Smart Pressure Transmitter Circuit Board With HART
Brand: SENSE Instruments Co., Ltd.
SKU: SE52H
Availability: InStock

Brand Name:	SENSE
Model Number:	SE52H
MOQ:	10PCS
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

HART

Name:

Integrated On Site Display Smart Pressure Transmitter Circuit Board With HART

Wide Voltage Supply Range:

9-45VDC

Signal Input:

1.5mV-3.6V

Packaging Details:

Carton packing

Highlight:

Smart Pressure Transmitter Circuit Board

HART Pressure Transmitter Circuit Board

Integrated Pressure Transmitter Circuit Board

Product Description

Integrated On-site Display Smart Pressure Transmitter Circuit Board with HART for Diffusion Silicon

Popular sensors acceptable
Self-stability and filter setup
Backup and restore data
Excellent EMC performance

The SE52H with HART-protocol is suitable for various sensors and converts input signals into 4~20mA analogue output signal.

Standard installation of the SE52H is for 2088 and BP 800 housing. Further versions are possible on request.

The SE52H can be programmed via three buttons.Following parameters can be adjusted: zero,span,decimal point,damping,

display mode,restore data and so on. For parmenter setting and visualization of measured value an optional liquid crystal

displays is available. The module is protected against miswiring and transient overvoltages

Application areas

The SE52H may be used for a wide

variety of measure sensors:

- pressure sensors

- differential sensors

- load cells

- magnetic field sensors

- strain gauge

- resistor of 2/3/4 wires

Performance

Wide voltage supply range

9-45VDC

Self-stability and filter setup

Improve transmitter stability

Freely linearity and temperature compensation

Improve transmitter stability

Self-learning function

Acceptability 1.5mV-3.6V signal input

Popular sensors acceptable

E.g. Pressure, differential, load cell,

Backup and restore data

Magnetic float,strain gauge etc.

Excellent EMC performance

Convenient for using on the locale

FAQ:

Q: What is the brand name of the PCB circuit board for pressure transmitter?

A: The brand name is SENSE.

Q: What is the model number of the PCB circuit board for pressure transmitter?

A: The model number is SE52H.

Q: Where is the PCB circuit board for pressure transmitter manufactured?

A: The product is manufactured in Shanghai, China.

Q: What certification does the PCB circuit board for pressure transmitter have?

A: The product is HART certified.

Q: What are the payment terms for purchasing the PCB circuit board for pressure transmitter?

A: The payment terms are T/T.
