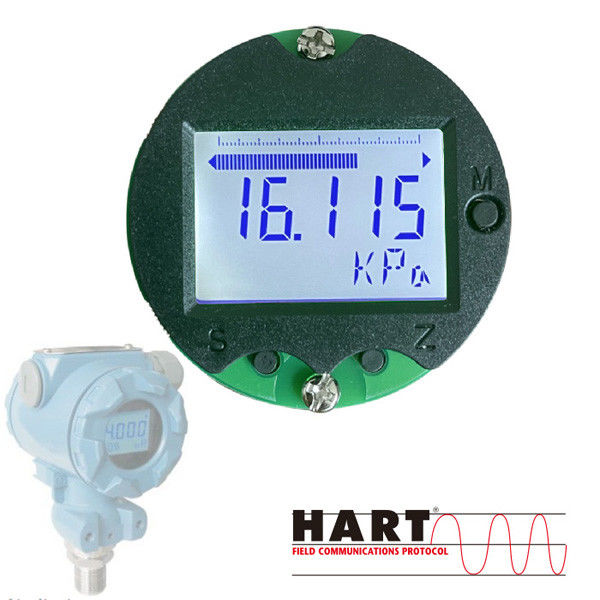

HART Protocol OEM Transmitter Module For Pressure Transmitters

Name: HART Protocol OEM Transmitter Module For Pressure Transmitters
Brand: SENSE Instruments Co., Ltd.
SKU: SE52H
Availability: InStock

Brand Name:	SENSE
Model Number:	SE52H
MOQ:	10PCS
Price:	Interview
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

HART

Name:

HART Protocol OEM Transmitter Module For Pressure Transmitters

Type:

Pressure Transmitter Module

Wide Voltage Supply Range:

9-45VDC

Signal Input:

1.5mV-3.6V

Protocol:

HART Protocol

Application:

Pressure Transmitters

Packaging Details:

Carton packing

Highlight:

OEM Transmitter Module

HART Protocol Transmitter Module

Pressure Transmitters Module

Product Description

HART-protocol OEM Transmitter Module for pressure transmitters

Popular sensors acceptable

Self-stability and filter setup
Backup and restore data
Excellent EMC performance

The SE52H with HART-protocol is suitable for various sensors and converts input signals into 4~20mA analogue output signal.

Standard installation of the SE52H is for 2088 and BP 800 housing. Further versions are possible on request.

The SE52H can be programmed via three buttons.Following parameters can be adjusted: zero,span,decimal point,damping,

display mode,restore data and so on. For parmenter setting and visualization of measured value an optional liquid crystal

displays is available. The module is protected against miswiring and transient overvoltages.

Application areas

The SE52H may be used for a wide

variety of measure sensors:

- pressure sensors

- differential sensors

- load cells

- magnetic field sensors

- strain gauge

- resistor of 2/3/4 wires

Performance

Wide voltage supply range:9-45VDC
Self-stability and filter setup:Improve transmitter stability
Freely linearity and temperature compensation:Min. 2 points, max. 16 points
Self-learning function:Acceptability 1.5mV-3.6V signal input
Popular sensors acceptable:E.g. Pressure, differential, load cell,Magnetic float,strain gauge etc.
Backup and restore data:Convenient for using on the locale
Excellent EMC performance:Suitable for harsh conditions

Operation

The HART module SE52H can be adjusted via three push buttons, PC with HARTTran software or PDA.

Display and push buttons.

The indication of the measured value as well as the configuration of the individual parameters occurs through a menu via the LCD. The individual functions can be set with the help of three push buttons.Besides in the display a bargraph is shown,which indicatesthe current precent input in per cent to the specified pressure range.

Following parameters can be adjusted:

unlock

PV=0

4 mA rerange

20 mA rerange
