Integrated Circuit Board Pressure Transducer 4-20mA Hart Pressure Transmitter

Name: Integrated Circuit Board Pressure Transducer 4-20mA Hart Pressure Transmitter
Brand: SENSE Instruments Co., Ltd.
SKU: SE62H
Availability: InStock

Brand Name:	SENSE
Model Number:	SE62H
MOQ:	10PCS
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

HART

Name:

Integrated Circuit Board Pressure Transducer 4-20mA Hart Pressure Transmitter

Output:

4-20mA Hart

Type:

Pressure Transmitter

Packaging Details:

Carton packing

Highlight:

Integrated Circuit Board Pressure Transducer

Pressure Transducer 4-20mA

Hart Pressure Transmitter

Product Description

Integrated Circuit Board Pressure Transducer 4-20mA Hart pressure Transmitter

Features

Continuously rotatable display (330^O)
Popular sensors acceptable
Self -stability and filter setup
Backup and restore data
Excellent EMC performance

Application areas

The SE62H may be used for a wide

variety of measure sensors:

- pressure sensors

- differential sensors

- load cells

- magnetic field sensors

- strain gauge

- resistor of 2/3/4 wires

The SE62H with HART-protocol is suitable for various sensors and converts input signals into 4 to 20 mA analogue output signal.

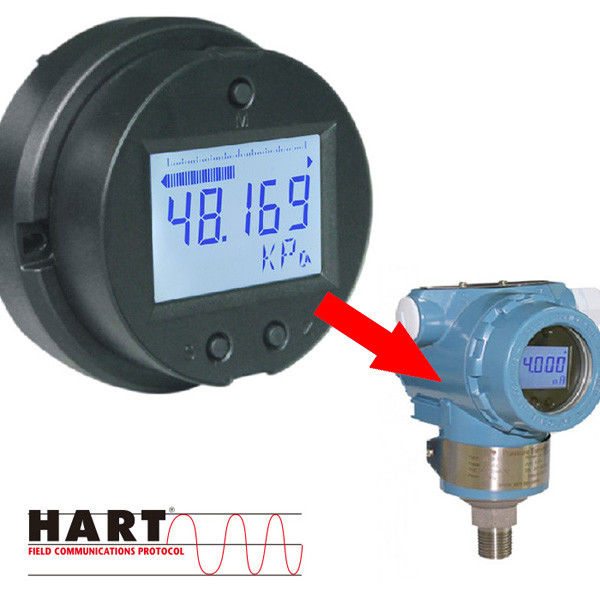

Standard installation of the SE62H is for 3051 housing. Further versions are possible on request.

The SE62H can be programmed via three buttons. Following parameters can be adjusted: zero, span, decimal point, damping,

display mode, restore data and so on. For parameter setting and visualization of measured value an optional liquid crystal displays

is available. The display can continuously rotatable 330 O and with backlight.

The module is protected against miswiring and transient overvoltages.

Output signal:4...20 mA with superimposed communication signal for HART protocol

Ambient and operation:-40-85℃ (without display),-20-70℃ (with display)

Storage:-40-85℃
Electromagnetic compatibility(EMC):Interference immunity and interference emission according to GB/T17626.2-1998, compliance with IEC 61000-4-3:1995

Display type:5-digit, 52 bars meter

Display range:-19999-99999

Input

2-wire sensor: Such as:2-wire resistor, magnetic float ball,magnetic rotating pole, etc.

3-wire sensor:Such as:3-wire resistor, E+H Ceracore II,E+H Ceracore M, etc

4-wire sensor: Such as:4-wire resistor, all bridge sensors, etc.

Electrical signal sensor:Such as: gauge pressure sensor etc.

Sensor supply: Constant volt age: 3.6V, constant curr ent: 0.1...1.0 mA
