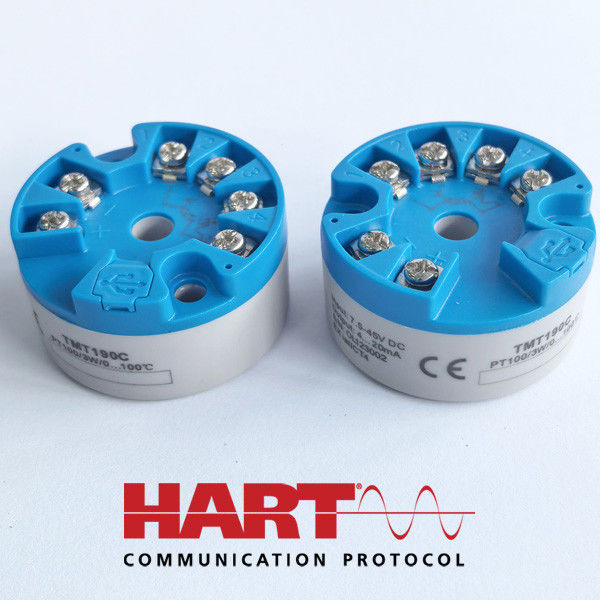

Pt100 HART Head Mounted Temperature Transmitter TMT192C Field Communication

Name: Pt100 HART Head Mounted Temperature Transmitter TMT192C Field Communication
Brand: SENSE Instruments Co., Ltd.
SKU: TMT192C
Availability: InStock

Brand Name:	SENSE
Model Number:	TMT192C
MOQ:	10PCS
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai China

Certification:

HART

Power Supply:

7.5 To 45V DC

Input:

Universal Input

Output:

4-20mA+HART

Isolation:

2000V AC Galvanic Isolation

Mounting:

Head Mounted

Operating Temperature:

-40 To +100 °C

Storage Temperature:

-40 To +85 °C

Protection Rating:

IP00

Weight:

90 G

Housing Material:

Plastic

Dimensions:

112.5 X 12.6 X 99 Mm

Signal Transmission:

2-wire

Response Time:

≤ 1s

Accuracy:

±0.1% Of Span

Packaging Details:

Carton packing

Highlight:

Pt100 Head Mounted Temperature Transmitter

HART Temperature Transmitter

Field Communication Temperature Transmitter

Product Description

Pt100 HART Head Mounted Temperature Transmitter tMT192C Field communication

Overview:
The TMT192C is a versatile head-mounted temperature transmitter designed for use with resistance thermometers (RTD), thermocouples (TC), and both resistance and voltage transmitters. It is configurable via the HART protocol, ensuring high performance and reliability across various applications.

Key Features:

Wide Sensor Compatibility: Accepts multiple input types including RTDs, thermocouples, resistance transmitters, and voltage transmitters.
HART Digital Communication: Facilitates easy configuration and diagnostics.
Self-Diagnostic Functionality: Monitors performance and alerts for any issues.
Analog Output: Converts diverse input signals into a scalable 4 to 20 mA analogue output.

Performance Specifications:

Universal Input Settings: Supports various sensor inputs with adjustable settings.
2-Wire Technology: Simplifies installation with a 4 to 20 mA analogue output.
High Accuracy: Maintains precise measurements across a broad ambient temperature range.
Galvanic Isolation: Ensures safety and signal integrity.
Internal Temperature Compensation: Features an internal sensor for active temperature compensation (specifically for thermocouples).
Wide Voltage Supply Range: Accommodates diverse power supply options.
Custom Measurement Ranges: Allows for tailored settings to meet specific application needs.
Expanded Input Capabilities: Supports resistance inputs up to 2 kΩ and voltage inputs up to 2 mV.

Applications:
Ideal for various industrial applications that require accurate temperature measurement and conversion.

Input	Type	Measurement Ranges	Min.meas.ranges
Resistance thermonmeter(RTD)	PT100	-200℃ to 850℃(-328℉ to 1562℉)	10K
Resistance thermonmeter(RTD)	PT500	►-200℃ to 250℃(-328℉ to 482℉)	10K
Resistance thermonmeter(RTD)	PT1000	-200℃ to 250℃(-328℉ to 482℉)	10K
Resistance thermonmeter(RTD)	Cu50	►-50℃ to 150℃(-58℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Cu100	►-50℃ to 150℃(-58℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Ni100	►-60℃ to 180℃(-76℉ to 356℉)	10K
Resistance thermonmeter(RTD)	Ni500	►-60℃ to 180℃(-76℉ to 356℉)	10K
Resistance thermonmeter(RTD)	Ni1000	►-60℃ to 150℃(-76℉ to 302℉)	10K
Resistance thermonmeter(RTD)	Resistance(Ω)	0Ω to 400Ω	10Ω
Resistance thermonmeter(RTD)	Resistance(Ω)	0Ω to 2000Ω	20Ω
Connection type: 2-wire, 3wire, 4wire connection
Thermocouples (TC)	B(PtR30-PtRh6)	0℃ to 180℃(-32℉ to 3308℉)	500K
Thermocouples (TC)	E(NiCr-CuNi)	-270℃ to 1000℃(-454℉ to 1832℉)	50K
Thermocouples (TC)	J(Fe-CuNi)	-210℃ to 1200℃(-346℉ to 2192℉)	50K
Thermocouples (TC)	K(NiCr-Ni)	-270℃ to 1372℃(-454℉ to 2501℉)	50K
Thermocouples (TC)	N(NiCrSi-NiSi)	-270℃ to 1300℃(-346℉ to 2372℉)	50K
Thermocouples (TC)	R(PtRh13-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	S(PtRh10-Pt)	-50℃ to 1768℃(-58℉ to 3214.4℉)	500K
Thermocouples (TC)	T(Cu-CuNi)	-270℃ to 400℃(-454℉ to 752℉)	50K
Voltage transmitters(mV)	Millivolt transmitter(mV)	-75mV to 75V	5mV
Voltage transmitters(mV)	Millivolt transmitter(mV)	-700mV to 200V	20mV
► ON Request

Ordering code

	Certification
	A B	Version for non hazardous areas NEPSI Ex ia CT4
		Configuration transmitter connection
		A 1 2 3 4	Standard factory configuration 3-wire
			Configuration Configuration Configuration Configuration			connection TC connection RTD(2-wire) connection RTD(3-wire) connection RTD(4-wire)
			Configuration temperature sensor
			A 1 2 3 4 5 6 7 8 B E J K N R S T	Standard factory configuration Pt100 Pt100-200℃ to 850℃(-328°Fto 1562°F) Pt500-200℃ to 250℃(-328°F to 482"F) Pt500-200℃ to 250℃(-328F to 482°F) Pt1000-200℃ to 250℃(-328°F to 482°F) Cu50 -50℃ to 150℃(-58°F to 302°F) Cu100-50℃ to 150℃(-58°F to 302°F) Ni100-60℃ to 180℃ (-76°Fto 356°F) Ni500-60℃ to 180℃(-76°Fto 356°F) Type B 0℃ to 1820℃(-32°F to 3308°F Type E -270℃ to 1000℃(-454F to 1832°F) Type J-210℃ to 1200℃(-346°Fto 2192°F) Type K-270℃ to 1372℃(-454°F to 2501F) Type N -270℃ to 1300℃(-454°F to 2372°F) Type R -50℃ to 1768℃(-58°F to 3214.4°F) Type S-50℃ to 1768℃(-58°Fto 3214.4°F) Type T -270℃ to 400℃(-454°F to 752°F)
				Configuration
				A B C D	Standard factory configuration(Pt100/3-wire/0 to 100℃) Customised measurement range Customised expanded configuration for TC Customised expanded configuration for RTD
TMT192C					Order code(complete) For example:TMT192CA-AAAA

SENSE INSTRUMENTS has specialized in the development and production of temperature transmitters for three decades. Our seasoned research and development team offers extensive expertise, ensuring that all our products include PC-side debugging software. We excel in providing customized software solutions to meet our clients' specific requirements, with OEM customization as a core strength. Our HART temperature transmitters come equipped with DD files and support debugging via handheld communicators.

Dimensions
Pt100 HART Head Mounted Temperature Transmitter TMT192C Field Communication 0

How to programme

Pt100 HART Head Mounted Temperature Transmitter TMT192C Field Communication 1

Install

Pt100 HART Head Mounted Temperature Transmitter TMT192C Field Communication 2
