Pressure Sensor and DP Sensor
Created with Pixso.

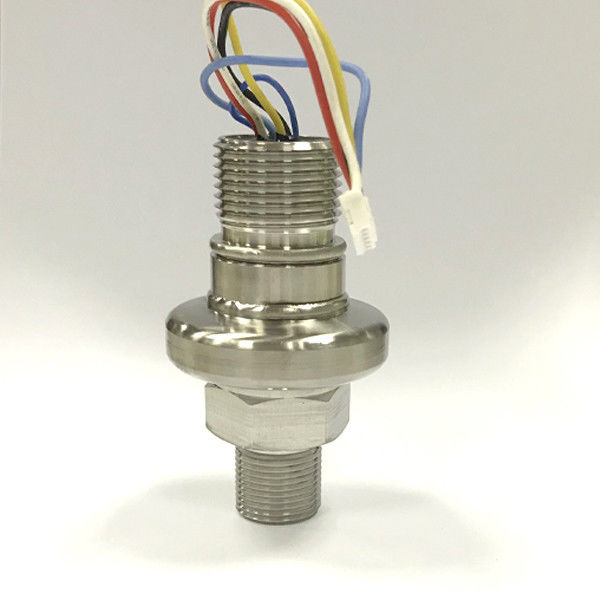

Monocrystalline Silicon Pressure Sensors for pressure transmitter

Monocrystalline Silicon Pressure Sensors for pressure transmitter

Monocrystalline Silicon Pressure Sensors for pressure transmitter

Brand Name: SENSE
Model Number: DPS803
Detail Information
Product Description
Detail Information
Place of Origin:
China
Highlight:

monocrystalline silicon silicon pressure sensor

,

monocrystalline silicon silicon pressure sensors

Product Description
Application
Typical areas of use are:
  • Process Control
  • High overload pressure
  • Gases
  • Compressed air
  • Liquids

Performance
  • High accuracy
  • Extremely long-term stability
  • Minimum temperature and static pressure inϐluence
  • Compact model and lightweight
  • Simple to mounting
  • Internal temperature compensation
  • Fast response time


Measuring principle:
Single crystal silicon sensor / Piezo-resistive / Metal sensor

Reference conditions:
  • Ambient temperature TA = constant, in the range of : +21 to 33 °C (+70 to 91 °F)
  • Humidity = constant, in the range of: 5 to 80% rH
  • Ambient pressure pA = constant, in the range of: 860 to 1060 mbar (12.47 to 15.37 psi)
  • Position of the measuring cell = constant, in range: horizontally ±1°
  • Process isolating diaphragm material: AISI 316L/1.4435
  • Filling oil: silicone oil

Warm up time: approx. 2 seconds
Long-term stability: better than 0.05% FS per year

Power supply:
Voltage supply: 5V DC
Output: 90±10mV

Environmental conditions:
  • Ambient temperature range:- 40 ... 85 °C
  • Process temperature range: - 40 ... 85 °C
  • Storage temperature range: - 40 ... 100 °C

Process wetted material (diaphragm):Stainless steel 316 L
Sensor body material:Stainless steel 304

Option
HART transmitter Module SE62H
HART Transmitter Module can convert voltage
signal into a 4 to 20mA output current
● Supply voltage: 9-45 VDC
● Output signal: 4 to 20mA with superimposed

communication signal for HART protocol
● Galvanic isolation: 2 kV AC
