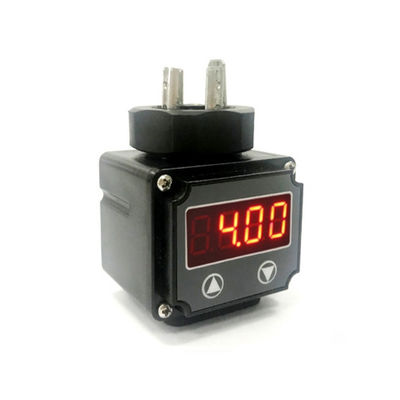

2 Wire LED Display Indicator Loop Powered Digital Indicator LEDD-01A For LED Industry

Name: 2 Wire LED Display Indicator Loop Powered Digital Indicator LEDD-01A For LED Industry
Brand: SENSE Instruments Co., Ltd.
SKU: LEDD-01A
Availability: InStock

Brand Name:	SENSE
Model Number:	LEDD-01A
MOQ:	10PCS
Payment Terms:	T/T
Supply Ability:	10000PCS / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

2 Wire LED Display Unit Loop Powered Digital Indicator LEDD-01A For LED Industry

Accuracy:

0.10%

Temperature Drift:

<30ppm

Resolution:

16-bit

Packaging Details:

Carton packing

Highlight:

2 Wire LED Display Indicator

LED Loop Powered Digital Indicator

LED Industry Loop Powered Indicator

Product Description

LEDD Display Unit 2 Wire Loop Powered Display LEDD-01A Digital Indicator LEDD Industry 2 Wire Loop Power Display

Application

All transmitters with an output signal 4 to 20 mA and a DIN 43650 plug

Performance

16 bit ADC MCU inside.
Two - wire working mode for 4-20mA.
The ultra-low operating voltage of 20mA is less than 3.0VDC.When 4mA is less than 2.5VDC power consumption.
Fully intelligent working mode.Supports user self - calibration and supports nonlinear correction of display values.
Highlight 0.36 inch LED display.
Standard Hirschmann appearance.
Extremely low temperature drift, suitable for -40~85 degree industrial environment.

We are specialized in providing high quality intelligent pressure measurement control products and solutions. Our company has

strong research and development strength, the series product quality is stable, the performance is outstanding and it has the very

strong anti-interference characteristic.

We are specialized in providing high quality intelligent pressure measurement control products and solutions. Our company has

strong research and development strength, the series product quality is stable, the performance is outstanding and it has the very

strong anti-interference characteristic.

No need external power supply, and the 4-20mA signals in the measured loop can be accurately displayed simply by

connecting them in series. Adopt imported special integrated circuit, SMT process manufacturing, high density of

circuit assembly, small size of instrument appearance. Its outstanding advantage is that its pressure drop compared

with similar products on the market is much lower.

Product lower pressure drop, stable display, high display brightness, solve the traditional LCD brightness and

temperature range of narrow shortcomings thoroughly.

Display
Display range	-1.9.9.9.to9.9.9.9.
Accuracy	0.10%
Temperaturedrift	<30ppm
Resolution	16-bit
Supply
Supply	Notrequired,4to20mAlooppowered
Voltagedrop	4mA<2.5VDC;20mA<2.9VDC
Electrical protection	inside the meter head with reverse polarity protection. The meter is not bright when the current is fed into the reverse connection, and the meter will not be damaged


Ambient temperatures
Storage	-40 ~85℃
Materials
Displayhousing	ABS
Others
Consumptioncurrent	Max<60mA@4-20mA.
Weight	Approx.65g
Ingressprotection	IP65
Colorofhousing	Black

Dimensions(mm)

Example for usage with a SENSE pressure transmitter with connector DIN 43650 connector.
